Product Description

Brief Introduction of CoolPro 2800 Truck Roof Mounted Air Conditioning

CoolPro2800 model breaks through in truck air conditioning field, and as the most ultra-compact 12V 24V truck roof mounted ac units have its unique feature that attract our customers’ like.

Matched with all kinds of truck cab skylight, so no major installation is required, only take place of the skylight with CoolPro2800. Some of drivers can install it by themselves. Really good choice for the fleets air conditioners.

Besides that, Coolpro2800 model have three colors for choice. Red, Blue and White.

photo: CoolPro2800 truck cab air conditioners in Factory with red, blue and white colors for choice.

Unique Features of CoolPro2800 Parking Truck Air Conditioners

Extra-slim and compact design, matched with truck sunroof size and do not to slotting in cabins.

There is no need to start the engine to provide power when parking, unloading the cargo, and the driver rests. It can also achieve the cooling effect of the indoor space of the driver.

The electric compressors used in CoolPro2800 truck air conditioner is directly driven by the vehicle battery, and do not need an external power supply.

Using electric scroll compressors for vehicles with excellent system matching, the efficiency is extremely high.

This system is designed for the original car air conditioner. When the original car air conditioner is damaged, it can temporarily replace the original car air conditioner and continue to cool the cab.

The maximum cooling capacity of 2.8 KW is equivalent to the 1.5P cooling capacity of household air conditioners, which can fully meet the cooling demand in the vehicle.

Streamlined design, ultra-thin appearance, optimized by CFD aerodynamics, smaller wind resistance.

With voltage protection function, the battery voltage is automatically disconnected when the battery voltage is low to the minimum starting voltage of the vehicle. There is no need to worry about starting the startup problem and protect the battery life.

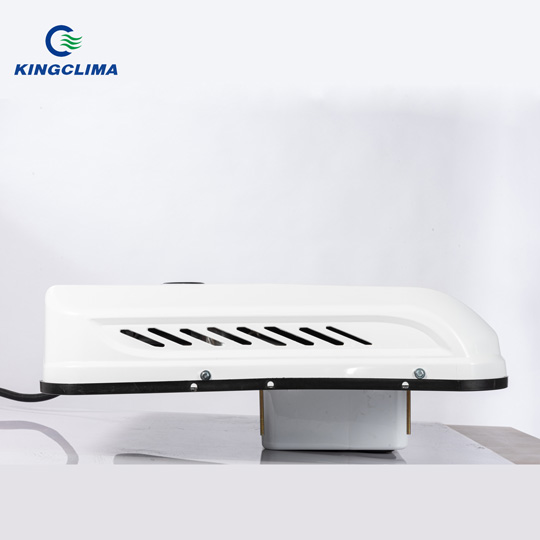

CoolPro2800-side of photo-kingclima coolpro2800 sleeper cab air conditioners1

Photo： CoolPro2800 sleeper cab air conditioners inside (see the VR details)

Technical of CoolPro2800 truck roof mounted air conditioner

CoolPro2800 Technical Data / Parameters
Dimensions		900804160
Air Volume		250-650m³/h
Weight		27.69KG
Time of endurance		10 hours (Intelligent frequency control)
Control mode		PWM
Low voltage rotection		19-22V
Refrigerant		R134a-550g
Compressor		Volts：DC24V ，CC ：20cm³/r，Rated speed：1000-4000rpm
Condenser		Parallel flow，Double fin，Dimensions：46437626
Fan		Brushless，Rated Voltage：DC24V，Power：100W，Air Volume：1300m³/h
Evaporator fan		Tupe belt type、Dimension：47576126，Cooling capacity ≥5000W
Blower		Brushless，Roated Volume：DC24V，Power：80W，Max:3600r/min

Application

CoolPro2800 electric air conditioners installation

CoolPro2800 air conditioners for tractor cabs

CoolPro2800 electric air conditioners installation
