Kingclima RV Air Conditioner AC Powered 220V/60Hz Available
DATE: 2022-12-27 10:58:03
SHARE:
What happened if a compressor rated as 50HZ 220V
air conditioner for rv were hook up to a 60Hz 220V ac.
Does it run slower? faster?, overheat? loss efficiency? gain deficiency? or does it matter... no problem at all?
Actually, It will run with following problems for a 50Hz motor running on 60Hz power supply:
- The core loss will increase and cause over heating of core.
- As the core loss will increase, the Power Factor of motor will reduce.
- The motor speed will be higher, so shaft load will increase. Motor will be overloaded at rated load.
- Motor will produce magnetic humming sound.
- Motor Bearing life will be reduced (marginal) for more speed and more load.
- Dielectric Stress on insulation will increase due to higher frequency, causes marginal reduction of life of motor insulation.
Therefore choose a suitable voltage
rooftop rv ac units is necessary.
At present, Kingclima can provide AC 115V/220V/60Hz
roof top ac for rv in batch production. Ucooler-4000pro model is
air conditioner for rv with Fashion design and 15000BTU cooling capacity will offer you a comfortable experience in the driving, camping, travelling.
| Model |
Ucooler-4000pro |
| Power Supply |
AC115/220V, 60HZ, 50HZ |
| Cooling Capacity |
15000 BTU |
| Power Input |
1668W |
| Rated Amp |
14.5A |
| Input Consumption |
2150W |
| Compressor Type |
Rotary |
| Air Flow |
550m³/h |
| Refrigerant Type |
R410A |
| Net Weight |
35.4kg |
| Gross Weight |
37.4kg |
| Product (L*W*H) |
750*700*360mm |
| Carton (L*W*H) |
950*770*390mm |
| Loading QTY(20/40/40HQ) |
108/222/222 |
Ucooler-4000Pro Rooftop Air Conditioner For Rv Advantages:
- Easy Installation. Rooftop mounted design, our A/C package is including all installation accessories, the refrigerants is pre-filled, also Kingclima will provide online installation support and user manual.
- 2 Year warranty, during this period, any parts is broken, Kingclima can provide free parts service.
- Big cooling capacity and air flow, will cooling down the cab temperature shortly.
More details of the 60HZ
RV Air Conditioner

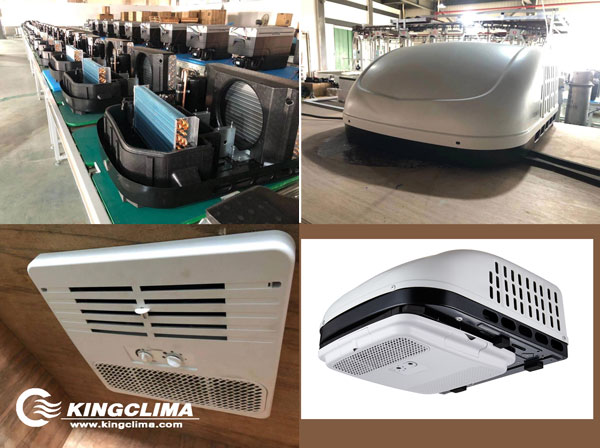

View of our production line:
If you are interested in this model, please feel free to contact us, we will offer you more information.
Besides the 110V 60Hz
RV air conditioner, we can also supply the
campervan air conditioning and small ac unit for rv with DC powered 12V or 24V voltage. Please feel free contact us for more information!
Tips: the below countries are the 60Hz rooftop air conditioner rv application:
Our U-cooler4000pro models can be meet the above countries demands on
rv air conditioners.
