King Clima is specialist in truck air conditioner solutions, besides the battery powered series parking ac solutions, we also provide the vehicle engine driven cooling solutions, especially designed for the construction machinery cabs.
This series of ac units have the advantages of anti-vibration and anti-dust, which are very suitable for the severe outdoor conditions, fast cooling speed and 4KW/5KW large cooling capacity, perfectly solve the high temperature place cooling problems

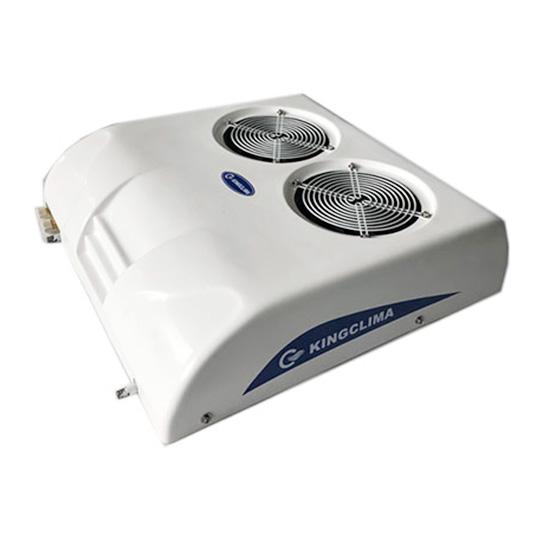

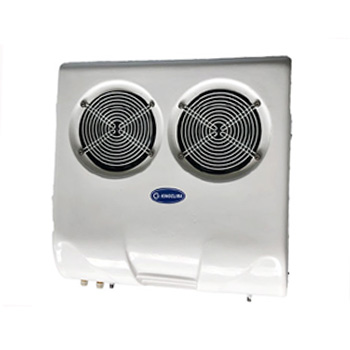

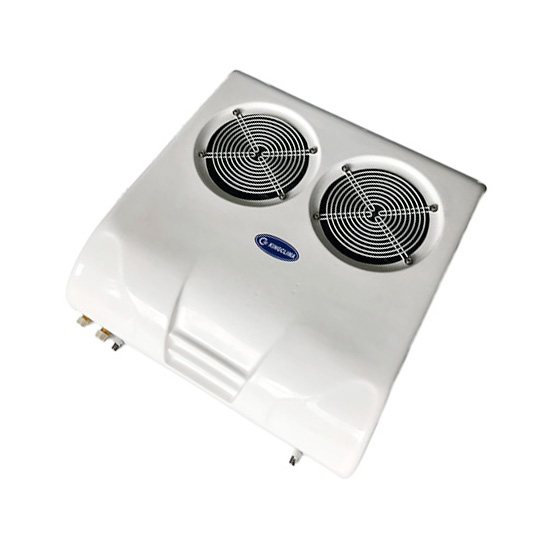

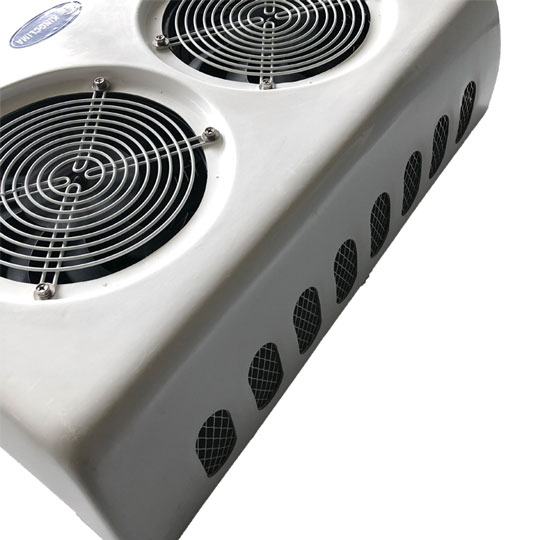

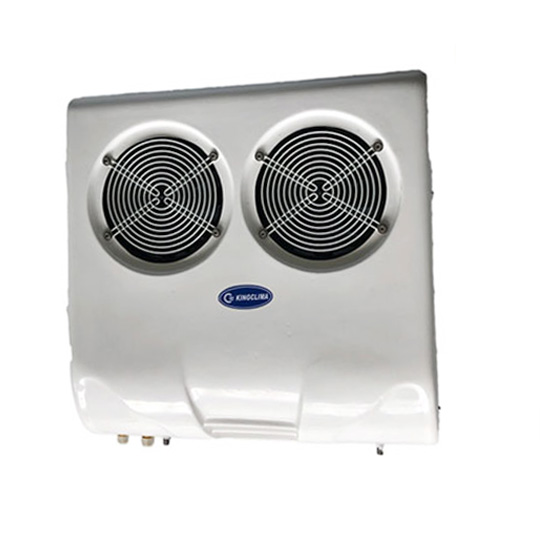

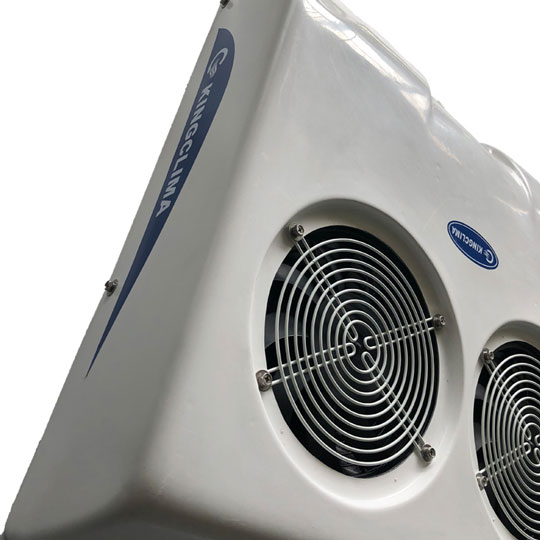

For the KK-40 model, it is 4000W cooling capacity, rooftop mounted, very famous for the off road truck cabs cooling solutions.

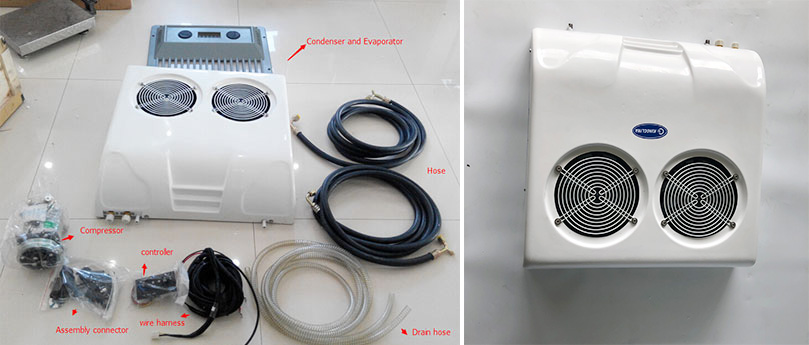

Photo: KK-40 cab air conditioner all kits
| Model | KK-40 | |||
| Cooling Capacity | 4000W | |||
| Voltage | DC12V/24V | |||
| Driven Type | Vehicle Engine Driven | |||
| Condenser Type | Copper Pipe and Aluminum Foil Fin | |||
| Condenser Fan Qty | 2 | |||
| Condenser Air Flow Volume | 680m³/h | |||
| Evaporator Type | Copper Pipe and Aluminum Foil Fin | |||
| Evaporator Blower Qty | 1 | |||
| Evaporator Air Flow Volume | 850m³/h | |||
| Evaporator Blower | Double Axle and Centrifugal Flow | |||
| Condenser Fan | Axial Flow | |||
| Compressor | 5H14, 138cc/r | |||
| Refrigerant | R134a, 0.9KG | |||
| Mounting Type | Integrated and roof top mounted | |||
| Dimensions (mm) | 730*695*180 | |||
| Application Vehicles | Truck cabins, Engineering vehicles, construction machinery and agricultural vehicles. | |||
