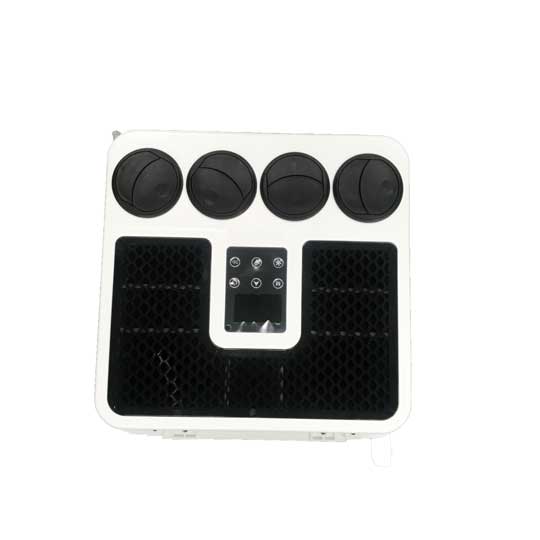

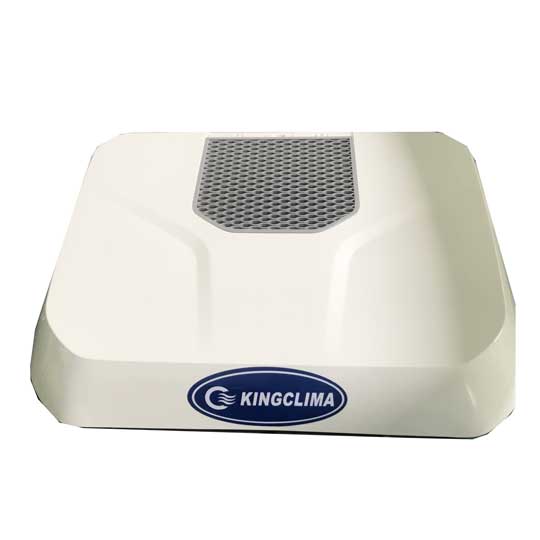

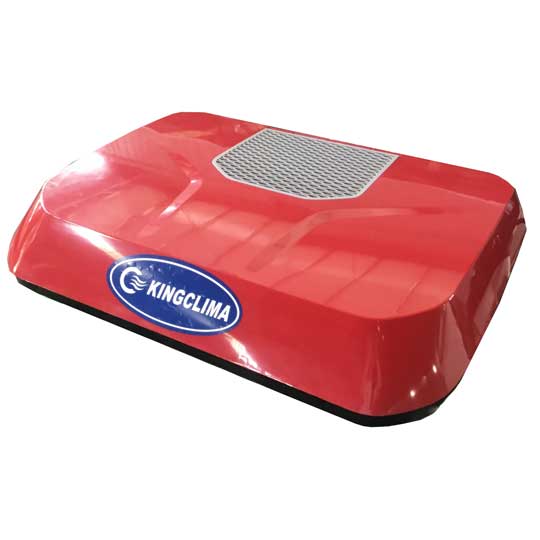

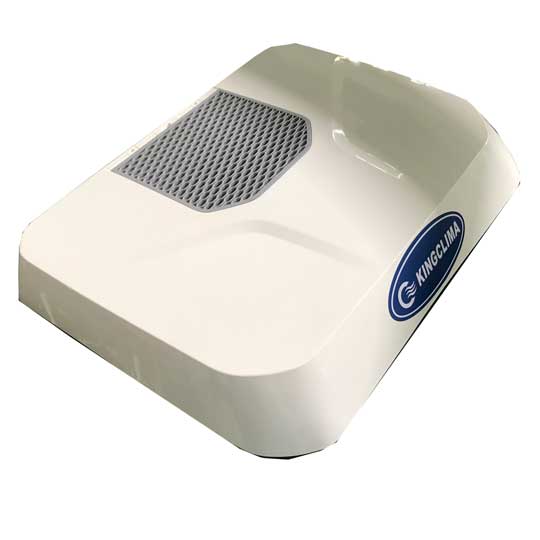

Introduction of CoolPro3000 Truck Cab Air Conditioner
CoolPro3000 truck cab air conditioner is battery power ac that independent the truck engine to working for cooling solutions with 3000W cooling capacity and 12V or 24V voltage. This no-idle solution is designed for overnight drivers in the truck cab to have a cool and comfortable sleeping time. Compared with the OE truck air conditioner, the 12 volt ac unit for truck or 24 volt ac unit for truck has the benefits of quiet, clean, fuel saving, easy to install and easy to maintain. There is no engine noise when sleep.
Features of CoolPro3000 Truck Cab Air Conditioner
-
Extra-slim and compact design of Height 20cm.
-
Matched with truck sunroof size and don’t need to slot in cabin, and it is suitable for sunroof size from 400x400mm to 900x600mm.
-
Full electric system. There is no need to start the engine to provide power when parking, unloading cargo and driver rest.
-
Very low power consumption min 300W and with ECO mode to save electricity .
-
The maximum cooling capacity is up to 3000w /10,350BTU, large air flow, and best cooling performance.
-
Use brush-less motor and internal compressor design suspension pillar shock absorption, no engine noise with less than 45 db give you a comfortable sleeping environment.
-
Injection mold, anti-aging, no deformation, air conditioning internal insulation layer is made of environmentally friendly materials and flame retardant, green travel！
-
With low voltage protection function, the battery voltage is automatically disconnected when the battery voltage is low to the minimum starting voltage of the vehicle. There is no need to worry about starting the start-up problem and protect the battery life.
Technical of CoolPro3000 Truck Cab Air Conditioner
| CoolPro3000 Technical Data / Parameters |
| Dimensions |
1040*755*180 |
| Air Volume |
450m³/h |
| Cut size/Skylight size |
400*400mm or 600*300mm |
| Weight |
35KG |
| Time of endurance |
10 hours (Intelligent frequency control) |
| Control mode |
PWM |
| Power |
300-700W |
| Rated Current |
50/60A |
| Refrigerant |
R134a---600g |
| Rated Cooling Capacity |
3000W/10350 BTU |
| Circulating air volume |
450M3/H |
| Energy efficiency ratio |
1.5-2.6W/W |
| Condenser |
Parallel flow，Double fin，Dimensions：53*34*2 cm |
| Evaporator fan |
Tupe belt type、Dimension：41*13*6 cm |
| Voltage |
DC24V/DC12V |
Application of CoolPro3000 Truck Cab Air Conditioner
